Roof Systems
Evaluate an exposed-fastener metal roof retrofit in Beaverton, OR by panel condition, attachment, drainage and support before pricing a new roof assembly.
Metal Roof Retrofit in Beaverton, OR
Fastener rows are the first roof-side check once a Beaverton, OR building has water inside. Room and leak location are confirmed first and the area is made safe; then exposed fasteners, panel laps, eaves, ridges and penetrations are photographed before anything is changed. Photos and leak log join the building file, and the next step is to determine whether failed washers, a panel transition or the underlying roof assembly is driving the repair.
With rain on roughly 151 days a year, fastener seals and laps on an exposed-fastener roof are practical inspection points. We check the existing panel, attachment and support conditions before considering an over-roof assembly. A standing-seam system uses a different attachment detail and movement path than the existing metal panels.
Map Fasteners and Laps
We inspect representative fastener rows for backed-out screws, flattened or split washers, corrosion, enlarged holes and panel movement. At end laps, rake edges, ridges and eaves, we look for sealant failure and water paths. A few failed washers may support a localized repair; broad deterioration, rust-through or loose panels can change the scope. The report records the affected elevations and roof zones rather than assuming every fastener has the same condition.
A wet-and-freeze cycle works on panel laps and roof transitions: Portland Airport sees roughly 32 freezing nights a year on top of its 36.9 inches of precipitation. We photograph the fastener sample, panel edges and drainage path, then build a roof condition survey the owner can use to compare repair with retrofit.
Decide Whether to Restore or Cover
Replacing washers and correcting loose fasteners can extend service when the panels remain sound, attachment is secure and the deck does not show a wider problem. Rust-through, repeated leakage, deteriorated coating or widespread panel distortion may call for a different scope. We inspect the panel profile and attachment points, check accessible substrate and note any test opening needed before recommending a new assembly over the existing roof.

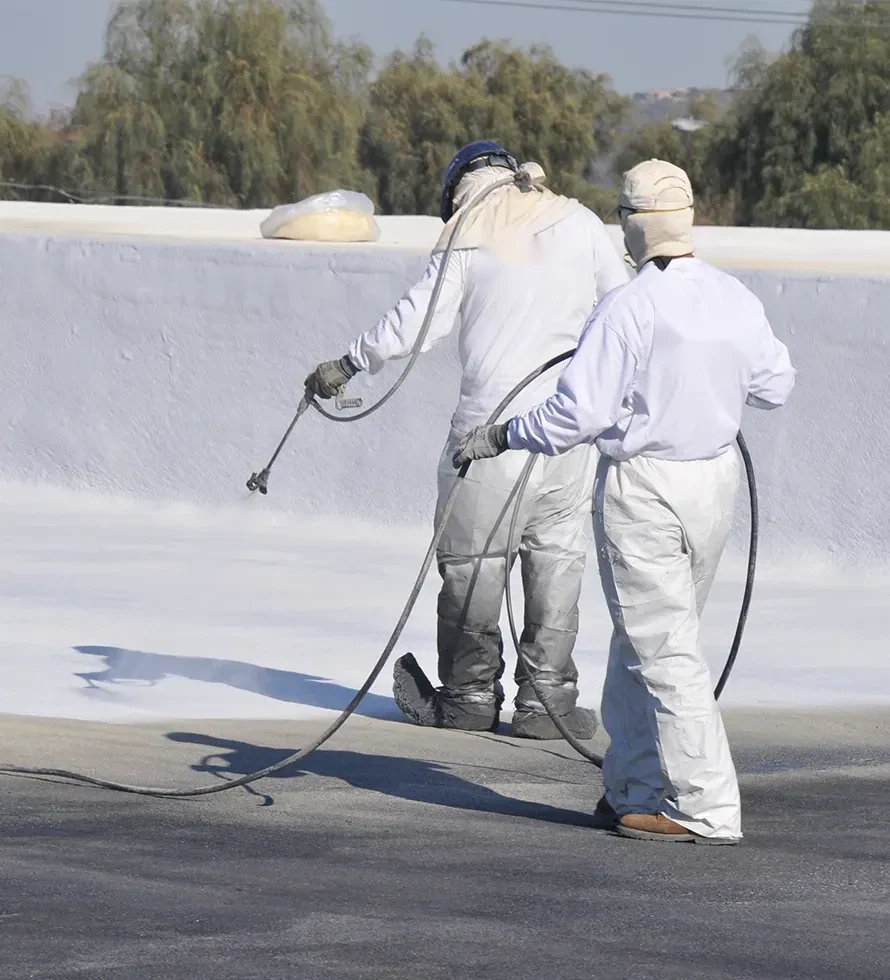

An over-roof retrofit can add framing or supports and a new roof layer, but it changes load, height, edge and drainage conditions. The project professional must review structural capacity and code requirements where the design requires it. We show the intended build-up and perimeter details in the scope sheet. A spray foam system or membrane assembly is not assumed; each option must fit the existing panel, substrate and project criteria.
Fastener work has to match the panel and support, not simply fill an enlarged hole with sealant. We remove a failed screw, inspect the surrounding metal, then use the specified replacement size and washer where the substrate can hold it. If the opening is distorted or corrosion extends beyond the fastener, that panel area is marked for repair or replacement. The scope notes the affected rows and any test location needed to confirm support below. Where a few rows have failed, the repair is priced by row so the owner can see what the screws and washers cost apart from any panel work.
Keep the Water Path Open
Retrofit work can change how water reaches the eave, gutter or scupper. We check the existing slope, low areas, panel ribs, valleys and discharge points before raising a new system. If a support or framing line blocks a path, the roof plan needs a correction rather than a new surface over the obstruction. We also mark where snow, leaves or maintenance traffic can collect so the owner can account for access after installation.
Access to the roof depends on the property and lift location, which differ between a store at Cedar Hills Crossing and a factory in Tualatin, so staging and delivery are confirmed with the site contact before we identify which gutters, walkways and entrances remain open. A drainage review checks the final discharge path along with the panel and edge details.
Build the Retrofit Detail
Installation begins with panel condition, attachment and substrate checks, followed by the specified framing or support system, insulation and new roof layer. We define the open area and daily protection boundary before removing fasteners or panels. The new assembly needs secure attachment, continuous perimeter transitions and flashings at curbs and penetrations. If the existing deck is concealed, we state what the inspection can confirm and where the design needs a test opening.
Rooftop equipment may need new curbs or extended supports when the roof height changes. The equipment detail is coordinated before the retrofit closes around the unit. We also verify that service clearances remain usable and that panel fasteners are not left as hidden water paths below the new layer. The replacement comparison separates a retrofit from a full tear-off, with structural review and concealed conditions called out.
Before a new roof layer is placed, we confirm how the support system crosses panel ribs and where the new loads transfer. The installer protects the old roof during staging, secures the support detail and closes each exposed edge in sequence. We check the final height at eaves, walls and equipment curbs so metal trim and flashing can be sized to the finished assembly, not the former panel plane.
Document What Remains
The closeout file should identify the existing panel condition, fastener repairs, attachment or framing added, drainage corrections, flashing details, photos and remaining maintenance items. We show the roof areas covered by the new assembly and which old components remain in place. A future leak can then be compared with the recorded panel joints, edges and penetrations.
Cost follows panel repair, attachment review, framing, insulation, deck condition, edge metal, lift access and the amount of new roof area. We itemize these drivers so the owner can compare restoration, retrofit and full replacement. A metal repair scope may address a localized fastener failure; a Beaverton roof visit closes on a scope sheet naming the panels, fasteners and details involved. The old panel rows are photographed before they are covered.
Related Roofing Work
Standing Seam Metal Roofing
Commercial Roof Inspection
Spray Polyurethane Foam Roofing
Commercial Roof Drains and Scuppers
Compare Metal Roof Options
Place an intake call with the building address and last known leak location. We will arrange a make-safe visit when needed and provide a written scope sheet for panel repairs, retrofit support and drainage details.
Questions About Metal Roof Retrofit
Can you replace the screws without replacing the panels?
That can work when the panels, holes, attachment and substrate remain sound. We inspect representative fasteners and check for corrosion or enlarged openings before pricing the replacement. Widespread deterioration or repeated leaks may call for a panel repair or larger roof scope.
What needs review before adding a retrofit roof?
The design should address structural capacity, attachment, roof height, edge transitions, drainage, equipment clearances and code requirements. We document the existing panel and support conditions, then coordinate the roofing scope with the project professional responsible for structural design.
Will an over-roof system hide leaks in the old panels?
A retrofit should start with a survey of the existing roof and any wet insulation or deck concern. We identify leaks and repair items before the new assembly is installed, then document what remains below. Concealed water should not be covered without a defined evaluation and correction.
Does a metal roof retrofit change the gutters?
It can change eave height, edge flashing and how water enters the gutter. We measure the existing edge and show the new discharge detail in the scope. The gutter and downspout path should be checked after the retrofit to confirm runoff has a clear route.
What belongs in the retrofit closeout file?
Keep panel and fastener findings, new attachment or framing details, flashing photos, drainage notes, covered roof areas and remaining maintenance items together. We provide that record so later service work can locate the old panel seams and new system transitions.
